LOADING ARMS

Bottom Loading Arms Offer Numerous Benefits Over Conventional Top Loading

Let us design the best bottom loading arms for your application.

The safety of the loading arm operator is the prime advantage since they remain on the ground – not on top of the vehicle where falls are a common threat. Connections are made more quickly so overall loading time is reduced.

Bottom loading systems also create less turbulence in the tank, reducing the danger of generating static electricity and can be easily adapted to recover vapors displaced during loading.

Talk With Us About Your Ideal Solution

Get In Touch

Safer and More Efficient than Hoses

Loading arms are often preferred over hoses in loading/unloading operations due to their enhanced safety, durability, and efficiency. They are less likely to fail or create trip hazards and require less maintenance compared to hoses.

Designed to Work Together

Carbis engineers design their loading systems with your process in mind. From piping to loading arms, each component of your loading system is designed for maximum throughput.

A Few More Benefits of Bottom Loading Arms:

  • Terminal tank truck bottom loading means tanks can be filled faster because a number of compartments can be loaded simultaneously
  • Bottom loading islands are simpler and cheaper to build than top loading racks. You can realize more savings because you’ll safely load more material in a shorter time with less spillage and vapor loss.
  • Improved safety by allowing the operator to remain on the ground during loading/unloading
  • The ability to fill tanks faster since several compartments can be loaded simultaneously

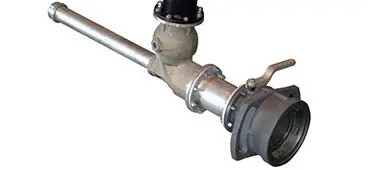

3″ & 4″ Bottom Loading Arms

At Carbis Solutions, we’re proud to offer high-quality loading arm systems and accessories! Our fantastic liquid bottom loading systems are specifically crafted to make transferring gas and liquids from trucks, railcars, and totes safer and efficient.

Our 3″ & 4″ bottom loading arms offer a number of advantages, such as:

  • Increased safety because an operator can remain on the ground
  • Enhanced safety since operators can stay safely on the ground
  • Less disruption in tank compartments decreases the generation of static electricity
  • You can load several compartments at once, boosting efficiency and making it super simple to put together and install!
  • Fast loading and unloading times
  • Can be connected via cam and groove fitting, dry disconnect, API coupler, or hammer unions

Bottom-loading arms are handy tools used for transferring liquids across various industries, such as chemicals, refineries, food and beverage, and dry bulk.

Bottom Loading Arm Types

Bottom loading arms play an essential role in the transferring of both toxic and non-toxic materials. We take the transfer of chemicals seriously. Therefore, we offer a number of specific types of bottom loading arms to ensure that our clients can obtain the product the best fits their needs.

Bottom loading arms are crucial for the safe transfer of toxic and non-toxic materials. Carbis Solutions prioritizes chemical transfer by offering various bottom loading arms, allowing clients to easily find their ideal solution.

Engineering Safety Access Solutions

Since 1930

Project Samples

Liquid Bottom Loading Systems

To be most effective, a bottom loading system must have ample horizontal range to reach the farthest compartment without needing to move the vehicle. Adequate vertical movement and drop-pipe lengths to service vehicles of varying heights is also necessary. A properly designed top loading system can provide protection and achieve this requirement. At Carbis Solutions, we know that customizability is the best way to supply our customers with these components. For this reason, each one of our bottom loading arms can come with a number of options. We also offer sizing that ranges from 2″ to 6″ as well as a number of different materials.

For optimal performance, a bottom loading system must have ample horizontal reach to access distant compartments without moving the vehicle. Sufficient vertical movement and drop-pipe lengths are also essential for varying vehicle heights. A well-designed system ensures safety while meeting these requirements. At Carbis Solutions, we prioritize customization, offering various options. Our bottom loading arms range in size from 2″ to 6″ and are available in multiple materials to fit your specific needs!

40+

YEARS IN BUSINESS

10K+

PROJECTS ENGINEERED

Learn More

Some of these materials our bottom loading arms can be designed with include:

  • Carbon steel (made exclusively from domestic materials)
  • Stainless steel
  • Aluminum
  • Special Alloys

At Carbis Solutions, we take great pride in our commitment to quality, safety, and top-notch service! What really sets us apart is our speedy shipping—often delivering your products in half the time compared to others. Plus, all of our standard bottom loading arms are proudly made right here in the USA.
